JY-G100 — Industrial Lubricant Circulation Filtration System
Industrial oil processing and circulation filtration — hydraulic oil, gear oil, compressor oil and industrial lubricant applications at storage tank and system level.

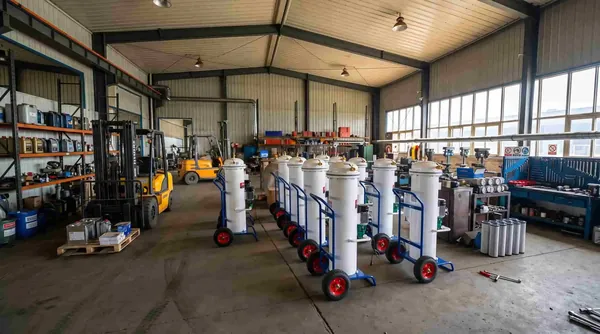

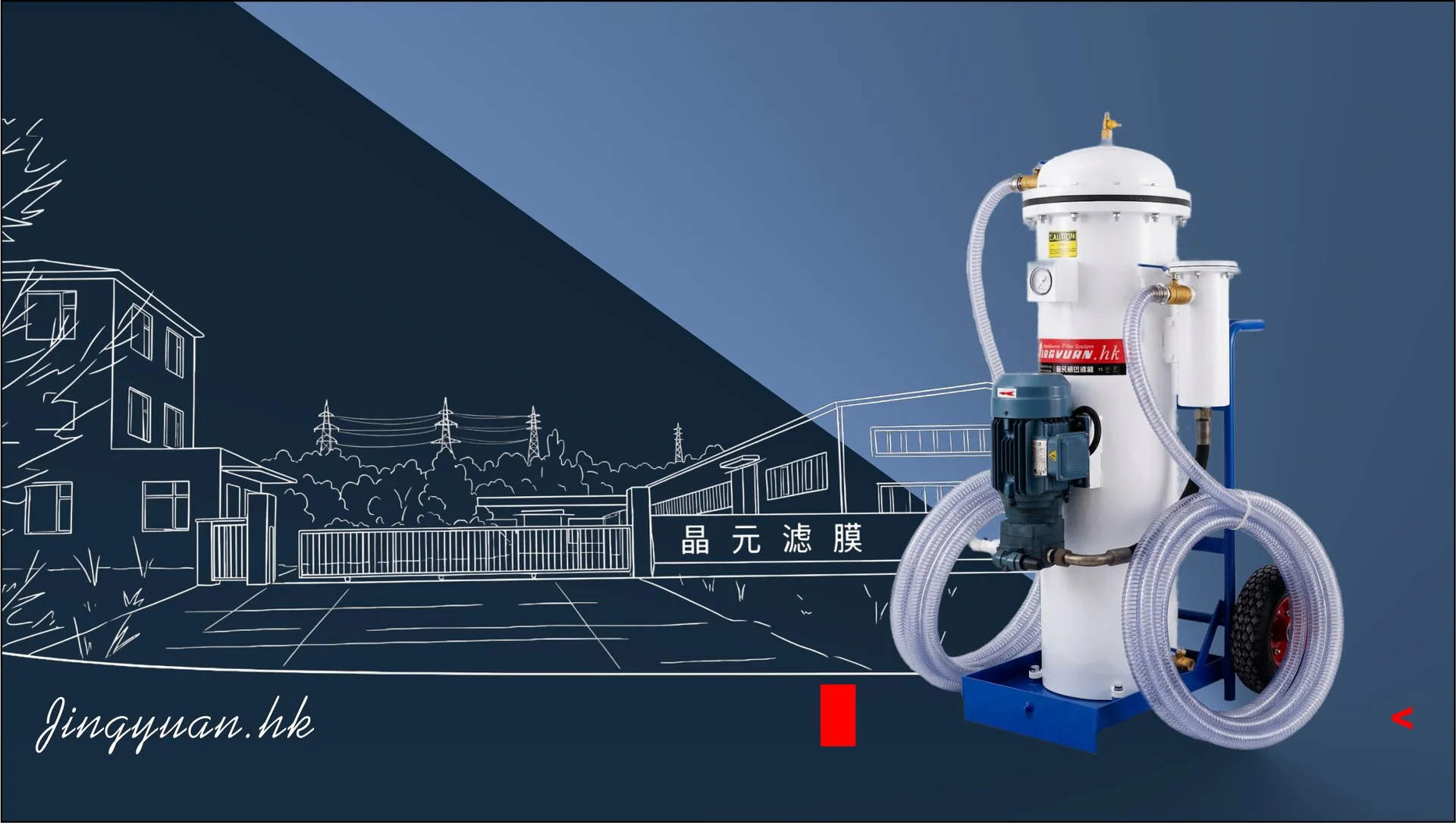

JY-G100 — Equipment Views
The JY-G100 is a mobile industrial oil deep-purification station manufactured by Jingyuan, positioned for industrial oil processing and circulation applications — hydraulic oil, gear oil, compressor oil, industrial lubricants and oil circulation / tank-side filtration. Unlike the JY-DX40-L (which serves lubricant production filling lines), the JY-G100 serves process conditioning and oil quality maintenance at the storage tank, circulation loop and industrial system level. Rated flow 10–60 L/min (viscosity-adaptive) with selectable precision of 2/5/10/15/20/25 µm; oil compatibility beyond the documented viscosity range is confirmed per application by Jingyuan engineering.
Industrial Oil Processing — Between Production Line and Maintenance
The three Jingyuan lubricant filtration products are not competing alternatives — each covers a different purchasing scenario: Production Line → JY-DX40-L, Industrial Oil Processing → JY-G100, Equipment Maintenance → JY-H130. The JY-G100 occupies the middle layer.
Typical Installation
Industrial Lubricant Production
Process conditioning of industrial lubricant batches before transfer or filling — supporting oil quality maintenance at the production stage.
Hydraulic, Gear & Compressor Oil Applications
Hydraulic oil, gear oil and compressor oil processing and circulation filtration for industrial plants and equipment systems.
Oil Circulation / Tank-Side Filtration
Continuous circulation and conditioning of stored industrial oils at the tank level.

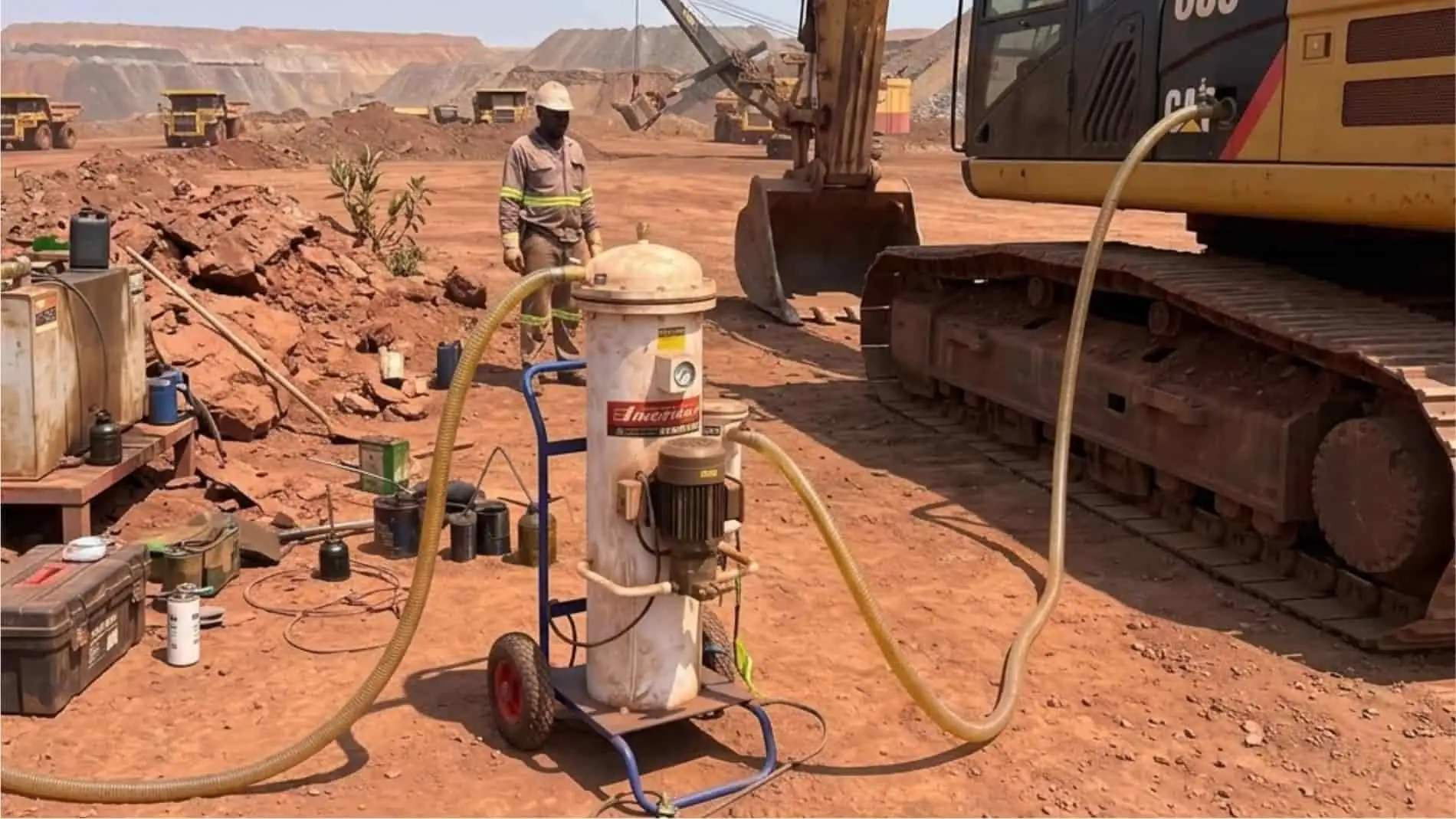

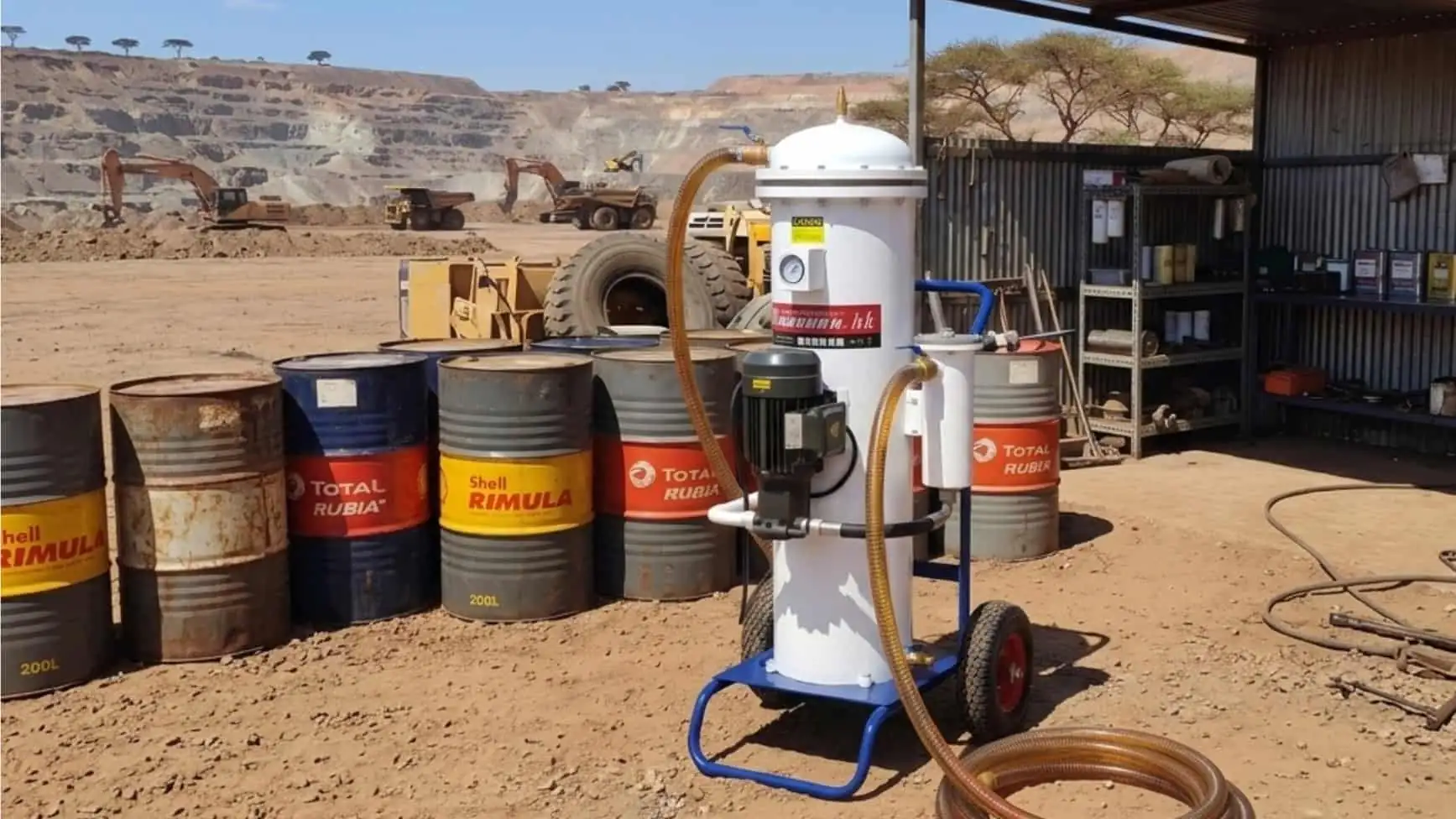

Running in a Southern Africa Mining Plant
A JY-G100 mobile unit patrols dozens of lubrication service points — hydraulic and gear oils (VG 32–220) — at a southern Africa mining enterprise, with ISO 4406 cleanliness improved from 22/20/17 to 14/12/9 and valve seizures eliminated.
Specifications
Standard specifications of the JY-G100 mobile deep-purification station. Oil compatibility beyond the documented viscosity and temperature ranges is confirmed per application by Jingyuan engineering.
| Item | Specification | Notes |
|---|---|---|
| Model | JY-G100 | Mobile deep-purification station |
| Rated Flow | 10–60 L/min | Viscosity-adaptive |
| Filtration Precision | 2 / 5 / 10 / 15 / 20 / 25 µm (selectable) | Multi-precision selectable |
| Max Working Pressure | 0.5 MPa | Operating 0.2–0.3 MPa |
| Max Kinematic Viscosity | ≤ 68 cSt (ambient temperature) | Common industrial oils |
| Fluid Temperature Range | −10 to 70 °C | Wide temperature adaptation |
| Housing Material | Carbon steel (standard) | Stainless steel (custom) |
| Seal Material | Viton (fluoroelastomer) | High media compatibility |
| Corrosion Protection | Class C3 | Industrial environment |
| Connections | Inlet / outlet DN25 | Standard connection |
| Dimensions | 800 × 750 × 1350 mm | Compact design |
| Net Weight | 147 kg | Easy relocation |
| Footprint | ≈ 0.6 m² | Space-friendly |
| Applications | Industrial oil processing · oil circulation / tank-side filtration · hydraulic oil · gear oil · compressor oil · industrial lubricants | |
Request JY-G100 Configuration Details
Tell us your oil type, viscosity, tank volume and duty cycle. Jingyuan engineering will confirm suitability and configuration.
