JY-H130 — Portable Lubricant Purification System
Portable offline lubricant filtration for hydraulic equipment operators, maintenance departments, injection molding plants, wind turbine maintenance and industrial equipment users.

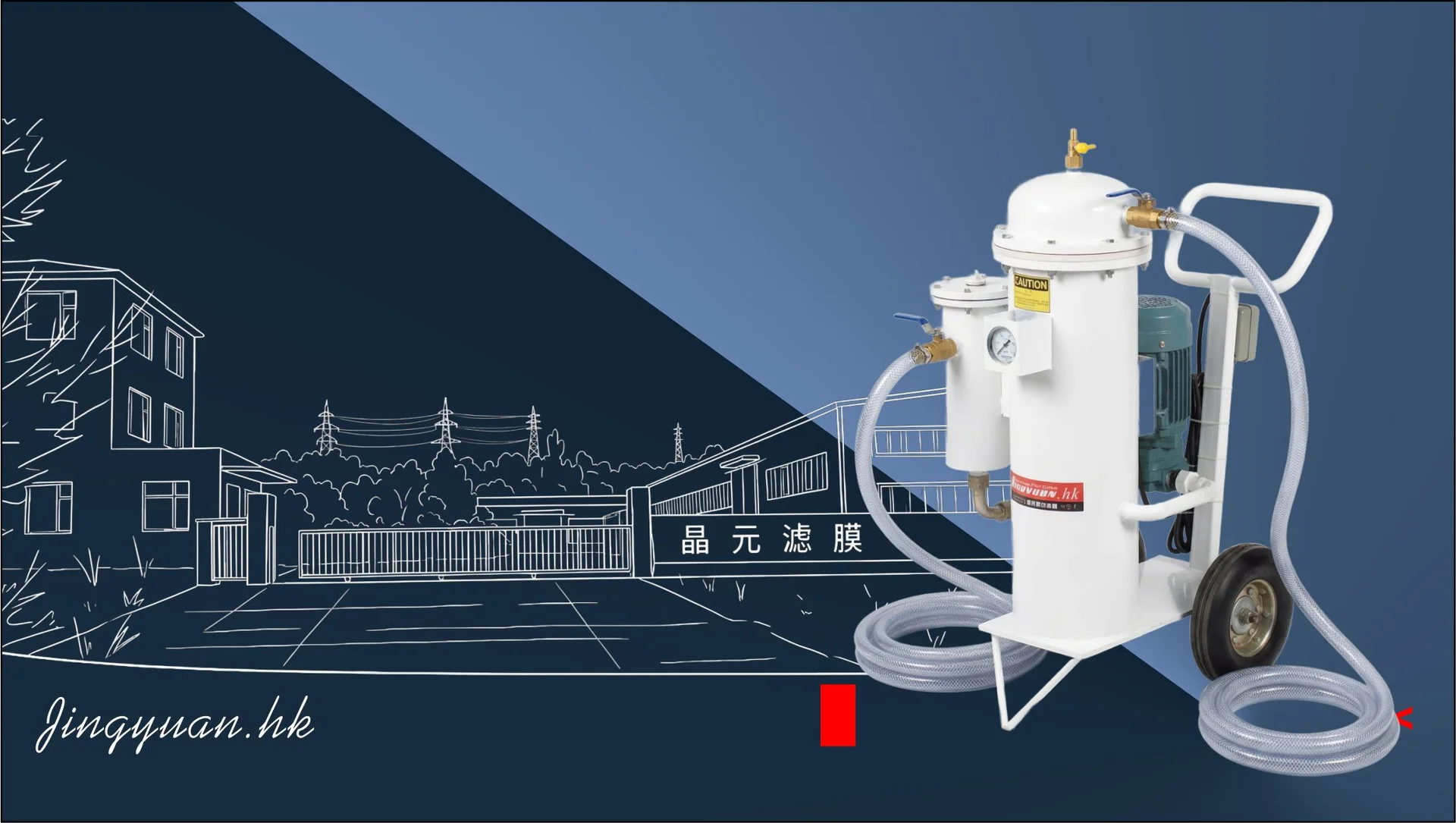

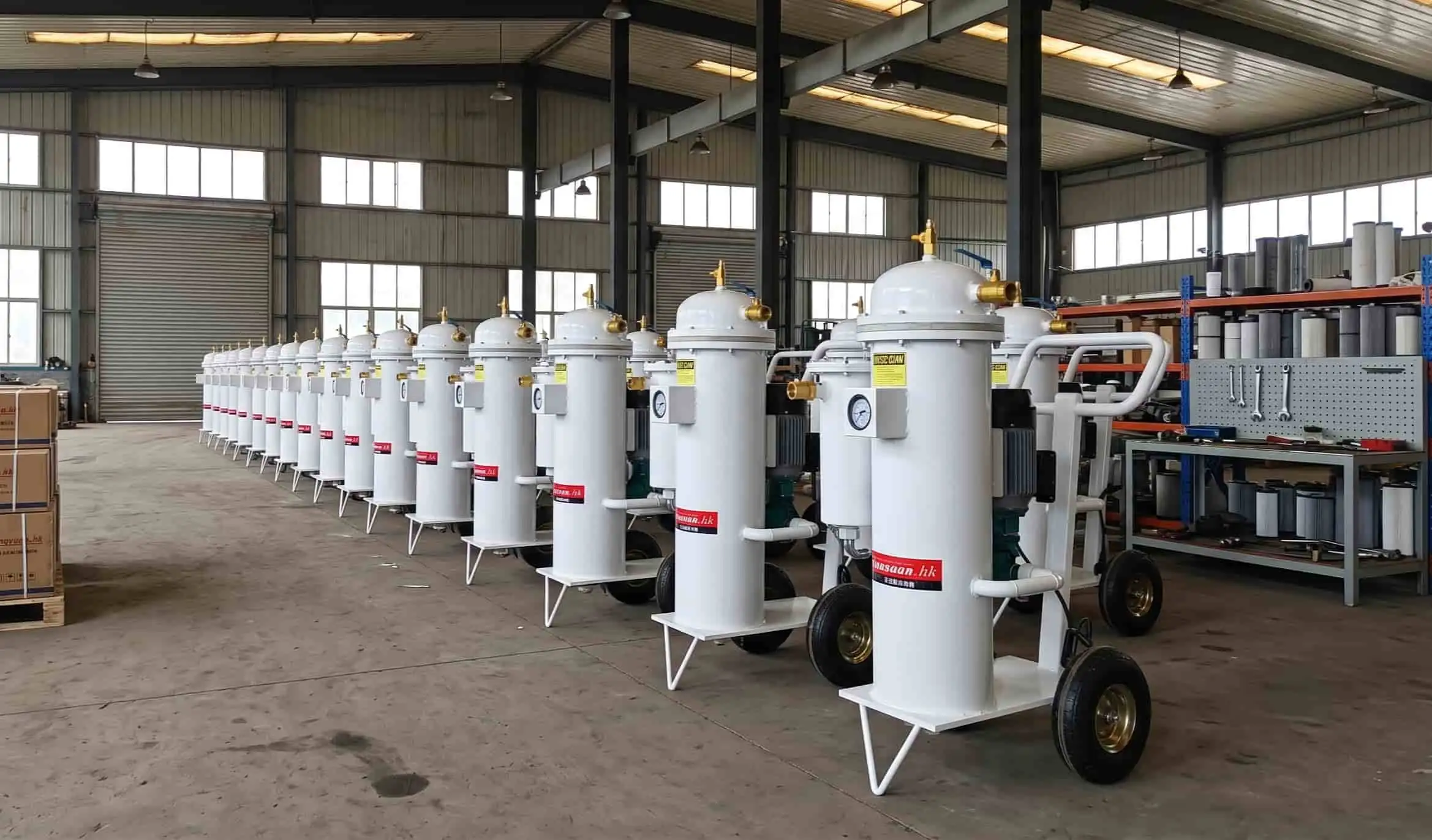

JY-H130 — Equipment Views
The JY-H130 is a portable lubricant purification system manufactured by Jingyuan for offline oil purification and maintenance filtration. Rated flow 20 L/min (max 28 L/min) with 5 µm nominal precision (β₅ ≥ 200), polymer membrane elements and an integrated 5000 Gs magnetic rod stage. It is applied to hydraulic oil, gear oil and lubricating oils in factory maintenance, hydraulic stations, gearboxes and equipment lubrication systems — typically operated tank-side or in a kidney-loop (offline) configuration. It is not a production-line system: for continuous lubricant manufacturing and filling-line duty, the recommended product is the JY-DX40-L.
Offline Maintenance Filtration — Tank-Side Purification
The JY-H130 serves equipment users and maintenance departments rather than lubricant production plants.
Typical Users and Scenarios
Factory Maintenance
Maintenance departments purifying hydraulic and lubrication oils in service, without taking equipment offline.
Hydraulic Stations & Gearboxes
Kidney-loop filtration of hydraulic power units, industrial gearboxes and lubrication systems.
Industrial Equipment Operators
Injection molding plants, wind turbine maintenance and general industrial equipment users extending oil service life through offline purification.
Answers to Frequent Search Questions
How to clean hydraulic oil?
In-service hydraulic oil is purified offline: the JY-H130 draws oil from the reservoir, passes it through a regenerable polymer membrane and returns cleaner oil to the system — without disassembly or taking equipment out of operation. Hydraulic oil filtration →
Portable hydraulic oil filtration system
The JY-H130 is a portable kidney-loop purification unit rated at 20 L/min (max 28 L/min) with 5 µm nominal precision, designed for hydraulic power units, lubrication systems and tank-side operation.
Offline lube oil filtration
Offline (kidney-loop) purification maintains oil cleanliness in gearboxes and lubrication systems while equipment stays in service, extending oil service life. How the membrane works →
Gear oil purification system
The JY-H130 purifies in-service gear oil — industrial enclosed gearboxes and wind turbine gearboxes — removing wear particles and contamination without draining the oil. Gear oil filtration →

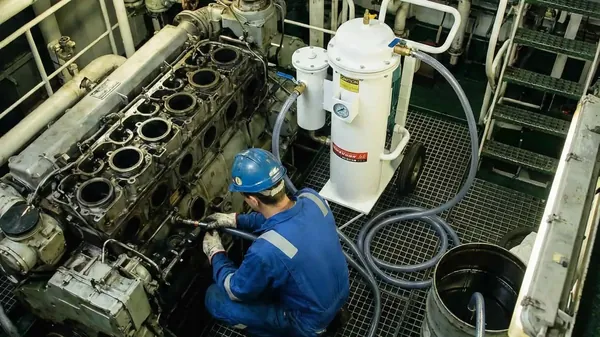

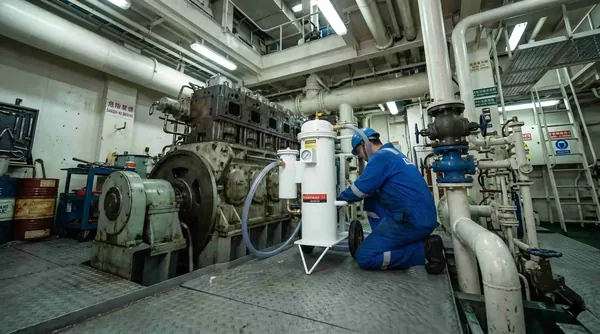

Running Across a Shipping Fleet
15 mobile JY-H130 units deployed across an Asia-Pacific shipping group's fleet — one unit serving multiple fueling ports and engine room tanks, with ISO 4406 cleanliness improved from ~22/20/17 to 14/12/9.
Specifications
| Parameter | Specification |
|---|---|
| Product Model | JY-H130 |
| Category | Portable lubricant purification system |
| Rated Flow | 20 L/min (max 28 L/min) |
| Nominal Precision | 5 µm (β₅ ≥ 200) |
| Magnetic Filtration | 5000 Gs (NdFeB N52) |
| Magnetic Rod Capture | ≥ 10 µm ≥ 95% · 5–10 µm ≥ 90% |
| Total Membrane Area | 0.72 m² (36 elements × 0.02 m²) |
| Membrane Service Life | ≥ 3 years (26,000 h) |
| Membrane Material | Polymer membrane |
| Net Weight | 76 kg (single-person trolley) |
| Dimensions | 730 × 520 × 1000 mm |
| Applicable Oils | Hydraulic oil · gear oil · lubricating oils |
| Duty | Portable / offline (kidney-loop) purification |
Request JY-H130 Details
Tell us your equipment type, oil volume and contamination condition. Jingyuan will confirm suitability and configuration.
